INTRODUCING THE CWT MULTI-BAL 5500 BALANCING MACHINE:

Balance crankshafts and much more..."Remember, if it rotates, you can balance it!"

Check out our crankshaft balancing machine movies!

Downloadable .PDF Multi-Bal 5500 datasheets coming soon!

Our newest balancing machine features "Third Plane Analysis". "HMVF", CWS, and "PDQ"!

Watch here for more Multi-Bal 5500 information and pictures coming soon!

The CWT Multi-Bal 5500 balancer is up and running, and preserves all the best features of the Multi-Bal 5000 but adds both new software and hardware updates.

A new and improved user interface includes a more robust 23" wide-screen monitor with touch-screen controls as well as new software that helps to drive the technician toward a solution.

The new software also adds "CounterWeight Shaping" (CWS)- a feature that can assist a properly trained technician how to shave off material from "cam ground" style counterweights. The results of this new feature are "operator dependent" - meaning the technician is required to properly input the parameters of the work into the interface - but then the software can offer a solution for balancing through material shaving.

New mechanical / hardware features include a redesigned drill mounting system.

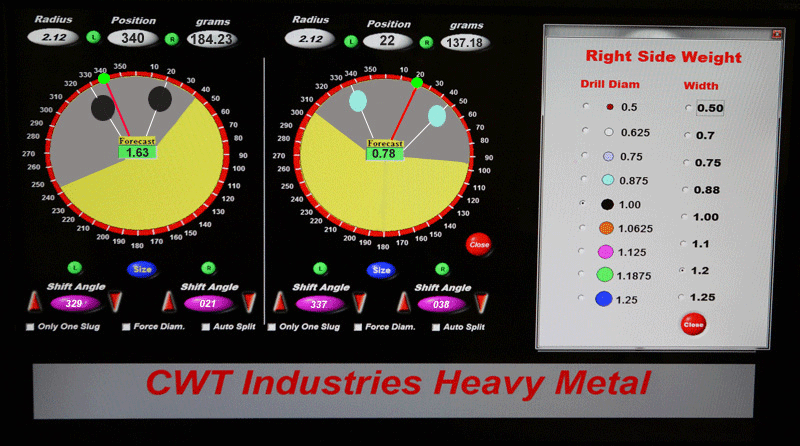

Heavy Metal Vector Forecasting (HMVF) remains standard on the Multi-Bal 5500 - a feature that assists the technician in not only achieving balance to tolerance from left to right on whatever work is being spun, but also allows any residual imbalance (any imbalance left beyond the set tolerance parameter) on the ends of the work to be placed 180 degrees out of phase so that cancellation of any residual excitatation may occur. Put another way, HMVF forecasting allows the technician to address not only where to add or remove weight to combat an imbalance, but it also allows the tech to address the position (or phasing) of that imbalance.

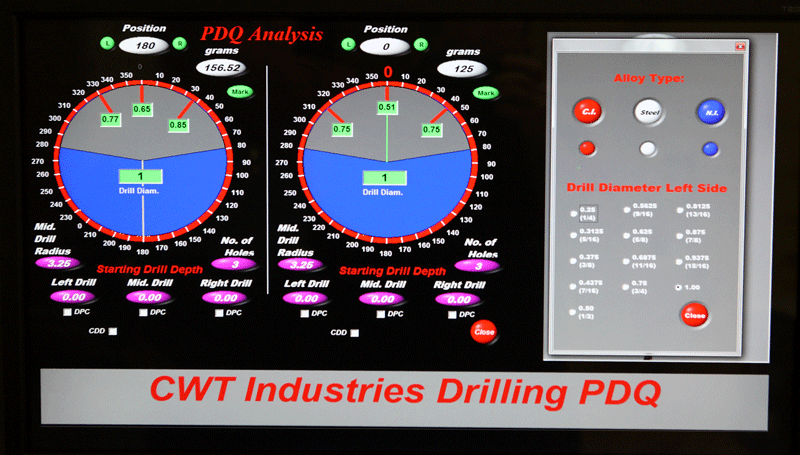

Also remaining standard is Precision Drill Qualifying (PDQ) which allows the technician to use the computer-driven predictive modeling software to forecast the repair in terms of location, depth, and diameter (or amount and location of material that must be added) before drilling (or addition of material) occurs. This allows the technician to assess how much labor will be required and how much cost the customer will incur BEFORE and work is done to the unit.

CWT continues to build this unit on the an industry-leading 68" capable chassis which weighs between 4100 and 4350 pounds. Why such a heavy chassis? Because a lighter chassis can vibrate and flex, introducing errors into the balancing process. CWT attains such a heavy-weight by filling the chassis with a proprietary resin-based fill. Here are CWT chassis assemblies at the CWT Norcross, Georgia USA manufacturing facility ready to be made into balancing machines:

Lesser machines offered elsewhere in the industry feature thin-steel in imported chassis construction and lack the in-house built heavy base that is standard on CWT machines. As a result, they simply cannot match the accuracy, quality, and repeatable results delivered by an American-built CWT machine!

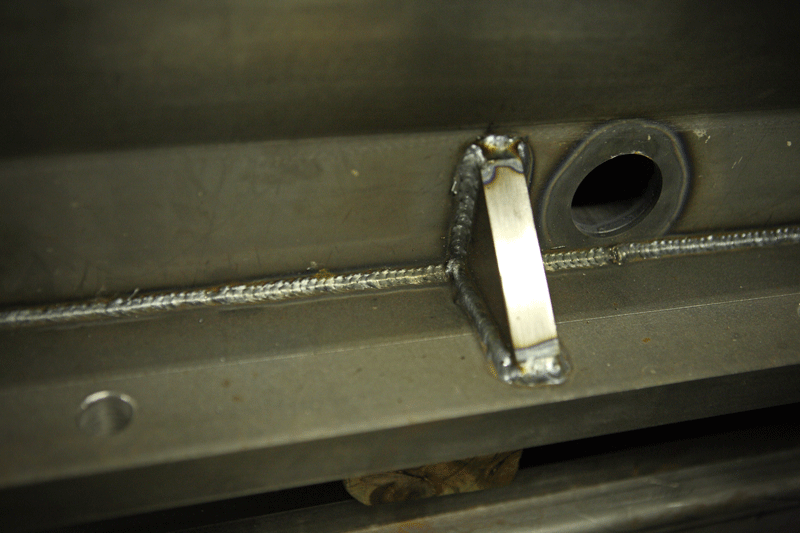

Look at the impressive welds done by hand by skilled CWT Industries craftsmen. When you buy a CWT machine, you are supporting workers who put pride into every assembly to insure you the best value in the industry without cutting corners:

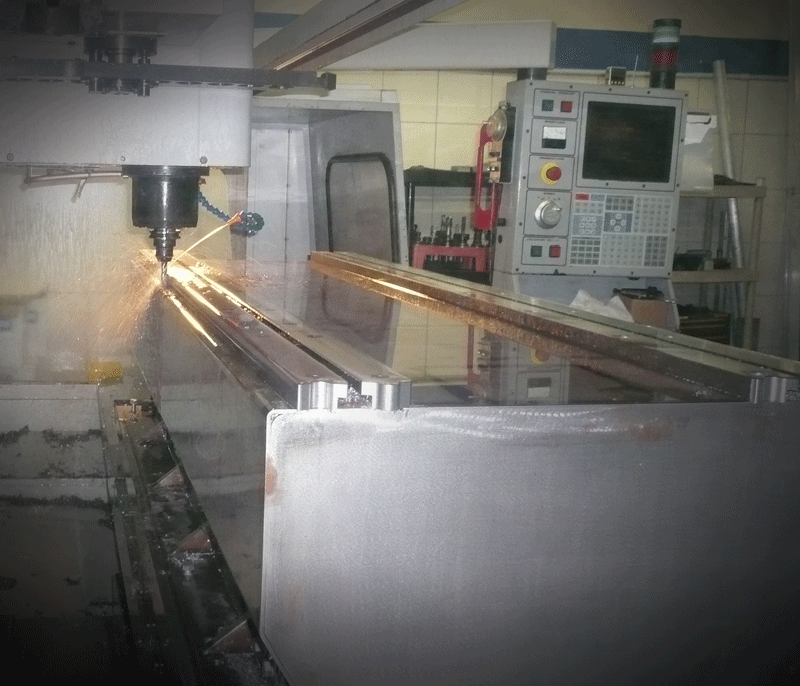

Here is one example of CWT's in-house machining capability:


CWT Multi-Bal 5500 Features Overview:
  • Resin-filled chassis in excess of 4000 pounds for zero vibration and error in analysis
  • Widescreen touch-control monitor
  • Intuitive user interface that drives technician toward a solution
  • New CWS "Counter Weight Shaping" software
  • HMVF "Heavy Metal Vector Forecasting"
  • PDQ "Precision Drill Qualifying"
  • 68" capable chassis with custom designs available for larger capacity based on customer needs
  • Built in Norcross, Georgia, USA in a modern CNC-machine equipped industrial complex by skilled workers who take great pride in delivering the best machine one can buy.

Please call us today to see what machine might best fit your needs.

The bottom line expectation of any machine should be accuracy and profit...this machine provides just that.  It can open the door to new potential markets, such as industrial balancing applications...balancing pumps, armatures, and roll pin shafts are just a few of the considerations.
